型號 |
DR-VE-0.1-MO |
DR-DG-10-HO |
DR-DG-10-MO |

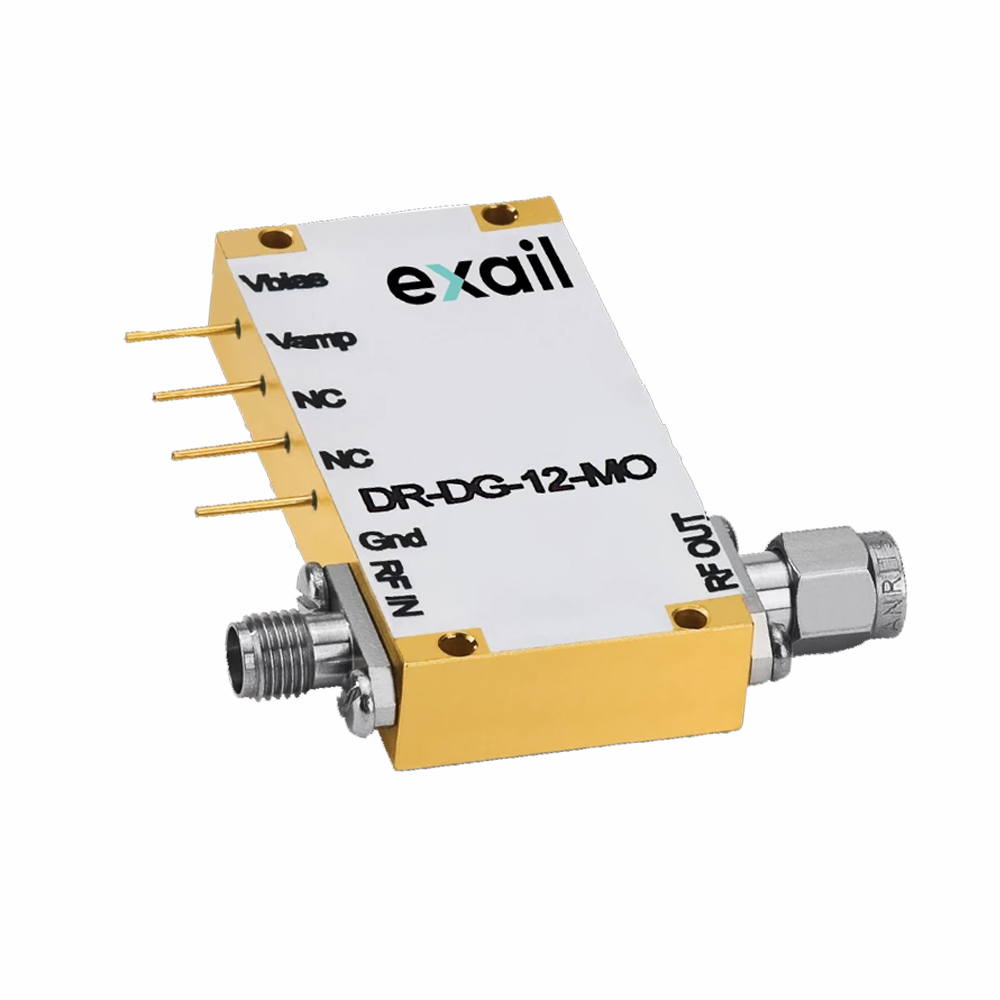

DR-DG-12-MO |
DR-DG-20-HO |
DR-DG-20-MO |
DR-DG-40-MO-BB |
|
電源電壓 |
±12V |
12V |
12V |
12V |
12V |
12V |
8V |
|
消耗電流 |
±100mA |
420mA |
260mA |
260mA |
530mA |
260mA |
300mA |
|
增益控制電壓 |
|
1.4V |
0.4V |
0.5V |
1.5V |
0.5V |
1.5V |
|
低頻3dB點 |
DC |
50kHz |
60kHz |
50kHz |
80kHz |
50kHz |
50kHz |
|
高頻3dB點 |
200MHZ |
8GHz |
8GHz |
15GHz |
23GHz |
18GHz |
40GHz |
|
信號增益 |
26dB |
30dB |
21dB |
28dB |
29dB |
30dB |
26dB |
|
增益平穩(wěn)度 |
|
±1.5dB |
±1.5dB |
±1.5dB |
±1.5dB |
±1.5dB |
±1.5dB |
|
輸入回波損耗 |
-10dB |
-10dB |
-10dB |
-10dB |
-10dB |
-10dB |
-10dB |
|
輸出回波損耗 |
-10dB |
-10dB |
-10dB |
-10dB |
-10dB |
-10dB |
-10dB |
|
輸出最大功率 |
|
26dBm |
22dBm |
23dBm |
26dBm |
23dBm |
20dBm |
|
輸出電壓 |
20V |
12V |
3-8V |
2-8V |
12.5V |
2-8V |
6.3-6.5V |
|
上升下降時間 |
6/10ns |
24.5/24.5ps |
22/22ps |
12/16ps |
12/16ps |
12/16ps |
9/12ps |
|
添加抖動 |
|
1.25ps |
0.8ps |
0.85ps |
1.05ps |
0.9ps |
0.75ps |
|
功率損耗 |
2.6 |
5W |
5.2W |
5.2W |
6.4W |
3.2W |
2.4W |
|
射頻輸入電壓 |
1V |
1V |
1V |
1V |
0.8V |
1V |
1V |
|
最大增益控制電壓 |
|
2V |
1V |
1.2V |
2V |
1.2V |
2V |
